Materials in Precision Machining: What to Know Before You Quote
In precision machining, the material you choose can make or break a job not just in performance but in price, lead time, tooling, and tolerance. Whether you're sourcing prototypes or scaling for production, understanding how different materials behave on the machine is key to quoting accurately and manufacturing efficiently.
Take a high-level look with us at the common materials we work with and why some are far more demanding than others.
Why Material Matters So Much
When we quote a job, material selection shapes every aspect of our approach:
Tooling and fixturing requirements
Cutting speeds and feeds
Cycle time and machine availability
Coolant strategy and heat management
Inspection complexity and final tolerances
In short: the harder the material is to machine, the more strategic the setup needs to be. And if your material is exotic or heat-treated, expect longer lead times and higher tooling costs.
Let’s break down what to expect from some of the most common (and most challenging) materials we see in precision machining.
Aluminum: Lightweight and Efficient
Aluminum is popular for good reason: it’s fast to machine, relatively inexpensive, and corrosion-resistant. Alloys like 6061 are extremely machinable, while others like 7075 bring higher strength at the cost of slightly more tool wear.
Challenges:
Can cause built-up edge (BUE) on tooling
Requires sharp tools and proper chip control
Softer alloys risk deformation under clamping
Typical Use Cases: Aerospace, consumer products, automation components
Stainless Steel: Strong but Stubborn
Stainless steel is known for strength and corrosion resistance but it’s no friend to machinists. Common grades like 304, 316, and 17-4PH often work-harden, generating heat and pushing tooling to the limit.
Challenges:
Work-hardens quickly if feeds/speeds aren’t optimized
Poor chip evacuation risks finish and tolerance issues
Demands rigid setups and slower cutting
Typical Use Cases: Medical, food-grade equipment, harsh-environment parts
Titanium: Strength Meets Complexity
Titanium alloys (especially Ti-6Al-4V) combine high strength and light weight, but their low thermal conductivity traps heat at the cutting edge. That makes tool selection, coolant flow, and fixturing critical and it’s why titanium is widely considered one of the most difficult materials to machine.
Challenges:
Generates extreme heat, limits cutting speeds
Prone to deflection and springback
Tool wear accelerates rapidly without optimal strategy
Typical Use Cases: Aerospace, medical implants, structural components
📌 We cover titanium in greater detail here.

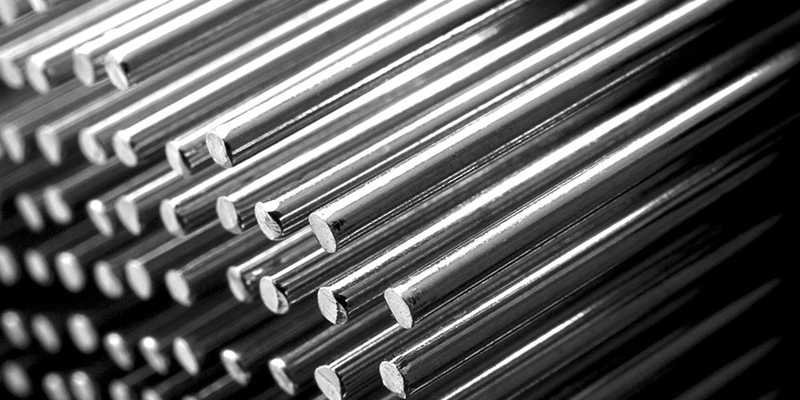

Tool Steels: Hardened for Wear, Tough to Cut
Tool steels like D2, A2, and H13 are designed to withstand stress and wear which makes them perfect for dies, molds, and other industrial applications. But that same hardness creates challenges in machining, especially if parts are already heat-treated.
Challenges:
Tough on inserts and end mills
Requires aggressive coolant and precision fixturing
Surface finish and dimensional accuracy take extra care
Typical Use Cases: Tooling, injection mold bases, high-load mechanical parts
Inconel and Super Alloys: Extreme Conditions, No Room for Error
These high-performance alloys are built for heat, pressure, and corrosion but they machine like a nightmare. Inconel, for example, work-hardens fast and retains heat, chewing through tools quickly.
Challenges:
Extremely low machinability
Must be cut slowly to avoid hardening the material mid-process
Demands strict process control and experienced operators
Typical Use Cases: Turbine components, oil & gas, high-temp environments
📌 We’ll explore these alloys, and how we approach them, in an upcoming post.
Before You Quote, Ask These Questions
What material and grade is required?
Is it heat-treated, coated, or raw?What tolerances and surface finishes are expected?
Can they be held across this material type?What’s your supplier’s experience with that material?
Machining titanium is a different world than machining aluminum.
Precision Starts with Planning
At Made In America Manufacturing, we specialize in hard-to-machine materials and tight-tolerance parts. We know that quoting accurately starts with understanding the job’s complexity. The right questions now save time, cost, and frustration later.
